Flow Performance FP1 $599
Includes FPcom software and serial cable for a PC
Update your flow bench to digital electronics
Simple connections replace your old manometers
The FP1 will work with any pressure differential producing device including velocity probes for velocity profile analysis and port flow analysis of velocity profiles.
Air flow rate measurement has never been faster or easier!
The Flow Performance FP1 is an electronic dual manometer that has the ability to calculate and display flow velocity and flow volumes in real time for Pitot tube and orifice types of measurment. Using a spreadsheet use any type of differential producing measuring device.
FP1 Features:
- Upgradable. Your FP1 can be upgraded to the latest firmware and hardware
- Electronic Manometer with Real-Time Velocity and CFM Processing and Readout
- Great for HVAC, Aerodynamic Research, Flow Benches and Test Fixtures
- Built-in compatibility for Pitot tube or orifice type flow measurement
- Unlimited data processing, display, storage capabilities with FPcom software that sends data directly to MS Excel spread sheet in real time.
- Wide range of pressure sensors available
- Dual Differential Pressure Sensors (standard) Up to Four Pressure Sensors Possible
- Use a velocity probe or add a dedicated velocity probe sensor
- Electronic Sensor Zeroing Keeps Sensor Drift in Check
- Data Logging Options
- Auxillary Serial Output Port available for Further Data Processing
- Convenient 9v Battery Operation for Portability
- PWM Output port available. Use with our PWM Valve to control gas pressures or flow rates.
- Various Modes of Operation to Suite Your Needs
- Thermal Stability.
Flow Performance FP1
Manometer/Flow Rate Processor
- Real-Time CFM/Vel
- Data Logging
- Battery Powered
The Flow Performance FP1 is a multifunction flow rate processor for stationary indoor use. It's hardware and firmware can be upgraded.
The base model includes:
- 2 each 40"wc pressure sensors
- FPcomXLT software for desk and lap top PC with Windows 95 and later and one free serial port
- Serial cable for connecting to a PC serial port.

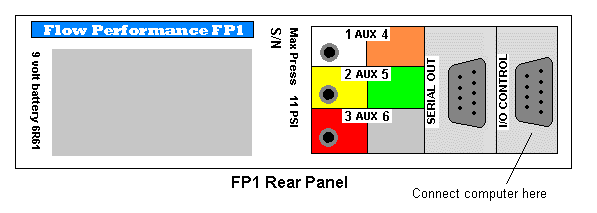

The rear panel of the FP1 shows the installation of some of the available options.
Aux1 temp sensor port
Aux3 PWM port
Serial out port

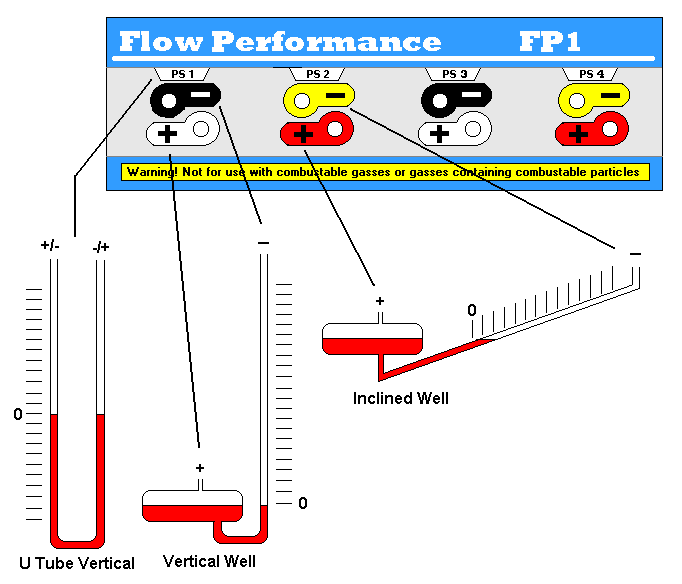

The FP1 can easily replace the manometers on a flow bench. The drawing above shows how it is done.
High performance, low cost air flow metering products
Copyright 2007 Flow Performance, LLC All Rights Reserved
Upgrade your Flow Bench with Electronics
