Flow Bench | Air Flow Measurement

Flow Performance Electronic Manometer/Flow Rate Processor

For flow benches, HVAC, aerodynamic research

Real-time pressure, cfm and/or velocity readings. Automatic test pressure control possible

Works with flow benches and velocity probes

Sorftware is Free with purchase of FP1 or system.

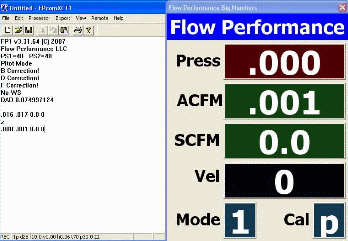

FPcom is easy to install and use. FPcom will also send data directly into an Excel spreadsheet in real time for the ultimate in data processing, display, and storage. Features big number display and event recording document.

Air Flow Control Valve

Our PWM Valves connect to our FP1 Electronic Flow Rate Processor to control air pressure to a preset value.

Perfect for automatic test pressure control on just about any flow bench

Adapters for flow benches Flow benches require an adapter to connect the test piece to the flow bench. Cylinder bore adaptors simulate the cylinder of an internal combustion engine for cylinder head flow testing on a flow bench. These adapters work with our FR4 Bench Receptacle and our Electronic Flow Bench System. Available in most any size up to 4.385"

Special order cylinder test stands with bores up to 5.0" also available.

Flow Performance

LLC

"...I got it to the test pressure I want in about 12 sec.This is really cool."

Low cost, high performance air flow metering products. Flow Performance products utilize the power of personal computers, the Internet and email to provide powerful air flow measurement, analysis and control.

Build a High Power Flow Bench

Flow Performance flow bench kits are a perfect core for building a high performance, high power professional flow bench. Flow Performance flow bench kits are capable of test pressures exceeding 300"wc.

Build a working flow bench in minutes. Precision, professional, computerized flow bench kit provides repeatable, effective measurements with nothing more than a shop vacuum for an air source. Perfect for the beginner as well as the professional.

start

Building a bigger bench

Air Supply design and construction

New to flow benches? FlowBench 101 Flow Bench Basics

Pressure Sensor 3 (PS3) Dedicated Velocity Probe Input for the FP1

FAQ (Frequently Asked Questions)

DIY Flow Bench Kits helps you get the most power from your racing engine.

Professional Flow Bench Kit

that can be powered by a shop vacuum

MS Excel (R) can receive the data from FPcom in real time for the ultimate in processing power. You can program Excel to process your data virtually any way you want. Charts, graphs, statistics, trends, the possibilities are endless for almost any application.

Valve Positioning & Measurement for cylinder heads

Demo video showing how to construct a Flow Performance FP2.0BS Basic System flow bench.

A flowbench can be built in minutes with our 2.0 Basic System.

A flowbench measures the air flow volume or mass that is flowing through objects such as internal engine parts.

Demo video showing a cylinder head flow test on a Flow Performance 2.0 Basic System flow bench (FP2.0BS).

A flowbench can measure the air flow capacity of an automotive cylinder head, and many other items.

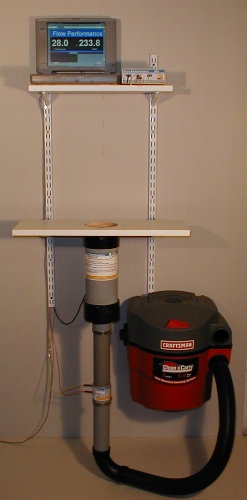

This flow bench uses a shop vacuum for estimated flow data. While using a shop vacuum to move air through the flow bench, the FP1 processor estimates the flow data to 28"wc test pressure, in real time, as the flow test is being performed.

Shop Vacuums for Basic 2.0 flow bench kit

USB to Serial Port Adapter

Excel for Flow Benches

Flow Performance FP1

............ or ...........

Flow bench kits that can grow with your flow metering needs, abilities and budget

Our flow bench plans show you how to assemble our flow bench kits in minutes

Excel not sold or supported by Flow Performance.

This is a demo of a big-block Ford head being tested on the FP2.0BS flow bench, in stock form, then after some mild porting and valve work.

This flow bench (FP2.0BS) uses a shop vacuum for estimated flow data. While the real test pressure is quite low using a shop vacuum, the FP1 processor estimates the flow data to 28"wc test pressure, in real time, as the flow test is being performed.

A larger, more powerful air supply can also be used with this kit for real cfm data at high test pressures.
