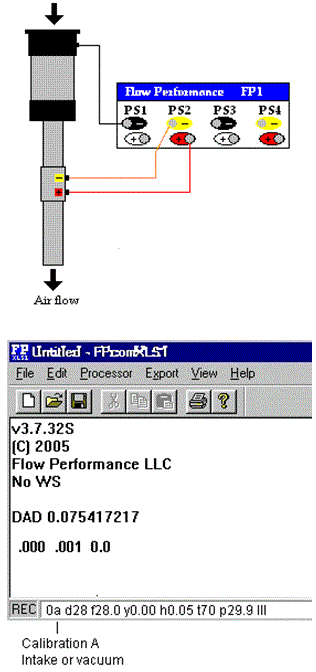

Calibration A is usually the calibration that is used when applying a vacuum to the flow bench. For Flow Performance flow bench kits, the A in the FPcom status bar should be a lower case a.
Select calibration A using the M command (M [ENTER] a [ENTER]), or Ctrl-A key combination, or clicking on the CAL A icon on the Fpcom tool bar.

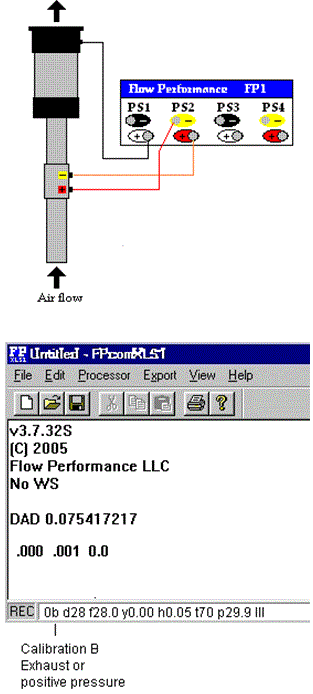

Calibration B is usually the calibration that is used when applying a positive pressure to the flow bench. For Flow Performance flow bench kits, the B in the FPcom status bar should be a lower case b.
Select calibration B using the M command (M [ENTER] b [ENTER]), or Ctrl-B key combination, or clicking on the CAL B icon on the Fpcom tool bar.

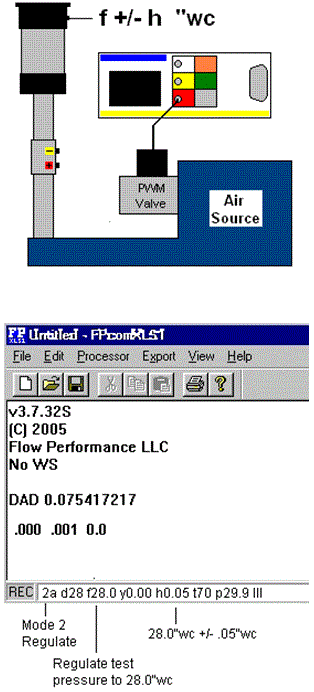

The test pressure of a flow bench is often regulated to a constant test pressure, usually 28"wc for typical automotive part testing. The flow bench operator can regulate the test pressure manually, or a Flow Performance PWM valve can be connected to the FP1 for automatic test pressure control.
When regulating the test pressure, mode 2 should be selected (m [ENTER] 2 [ENTER]). The desired test pressure should be entered into f ( f [ENTER] 28 [ENTER]), using 28"wc as an example, and the test pressure tolerance entered in h (h [ENTER] .05 [ENTER]).

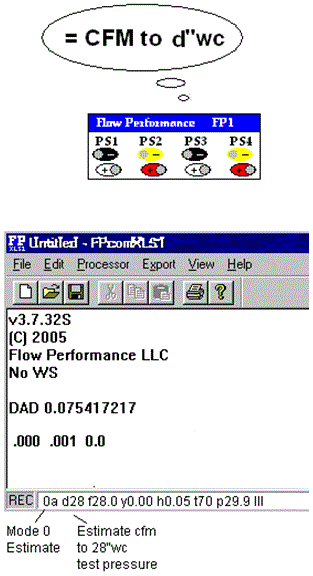

The Flow Performance FP1 can estimate cfm to a test pressure other than the current test pressure. This allows flow testing without having to regulate test pressure. The flow bench operator enters the desired test pressure into d, usually 28"wc (d [ENTER] 28 [ENTER]). Mode 0 (zero) is selected for cfm estimation..
(m [ENTER] 0 [ENTER]). While in mode 0, the cfm is estimated to the value entered into d, no mater what the actual test pressure.
This is usefull when using low power air sources like a shop vacuum, or when your air source is not powerfull enough to attain the desired test pressure.

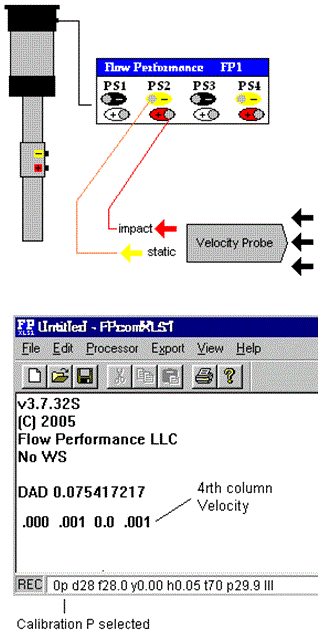

A velocity probe can be connected to the FP1 PS2. The user will have test pressure and velocity readings, but the cfm readings that will be generated by the velocity probe will be relatively meaningless (unless further settings are entered).

Calibration P is selected to enable PS2 for a velocity probe using the M command (M [ENTER] P [ENTER]), or the Ctrl-P key combination, or by clicking on the CAL P icon in the Fpcom tool bar.

Note, if a test pressure is present but the velocity reads zero, the connections to PS2 are probably reversed.

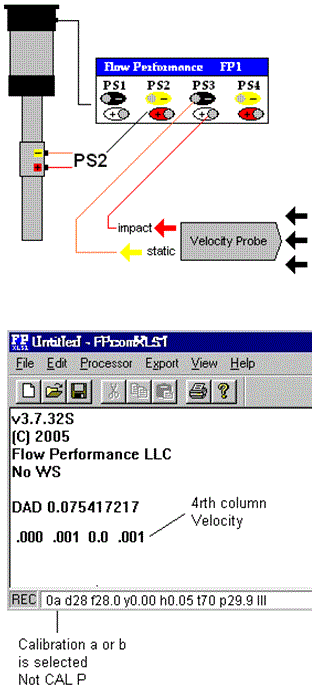

The optional FP1 PS3 allows a velocity probe to be connected to the FP1 with full flow bench functionality.

PS3 is enabled with the a command, by setting a to 1 (a [ENTER] 1 [ENTER]).
PS3 is disabled with the a command, by setting a to zero (a [ENTER] 0 [ENTER]).
Disabling PS3 when not needed will speed up the operation of the FP1.

Note, if a test pressure is present but the velocity reads zero, the connections to PS3 are probably reversed.

                             Calibration (CAL)
The Flow Performance FP1 allows up to 6 calibration entries stored to memory, A - F. The FP kits use Calibrations A and B
CAL A  (Intake)                                  CAL B (Exhaust)
                                   Mode
     The mode determines how your flow bench will operate and how data will be processed and displayed
Mode 2 (regulate)                     Mode 0 (Estimate)


                         Velocity Probe
You can connect a static/Pitot velocity probe to the Flow Performance FP1 for local velocity readings
Probe on PS2                           Probe on PS3
                                                                                                    (optional)
Back     Flow Performance Flow Bench Setups
When setting up your flow bench, you want to select two parameters for your test: the calibration (CAL), and the mode.
    The information below shows you how to set up your flow bench for the different setups and options available.
